MODEL BGUS/BGUS-D • SG/SG-D OPERATOR INSTALLATION GUIDE

-28-

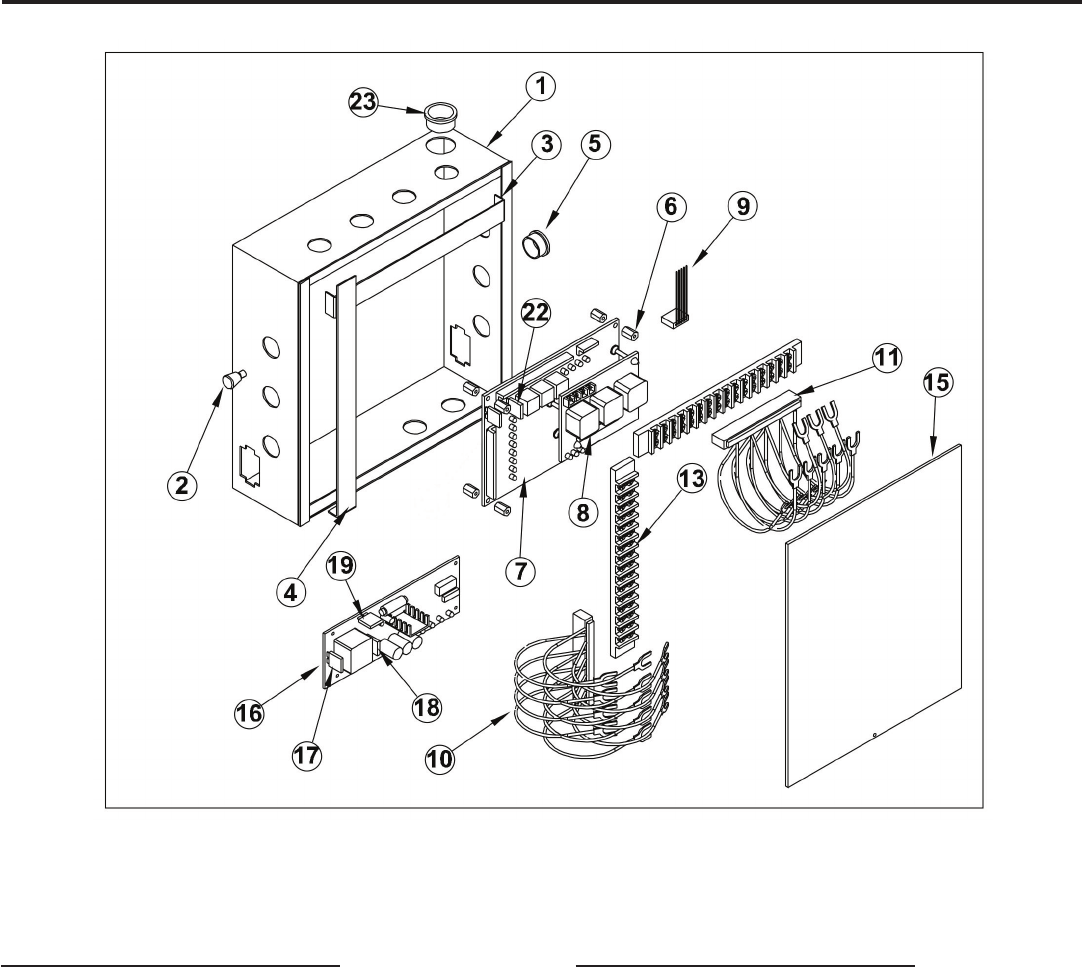

MODEL BGUS-D • SG-D CONTROL BOX PARTS LIST

REF

NO. PART NO. DESCRIPTION

1 2100-1778 Control Box Wrapper

2 2200-876 Plunger, Spring Loaded

3 2100-1762 Terminal Strip Bracket, Input Side

4 2100-1761 Terminal Strip Bracket, Output Side

5 2200-122 Heyco Bushing, .87 diameter

6 2500-1948 Control Board Standoff

7 2510-271 Control Board DC

8 2500-1947 DC Motor Drive Board

2510-247 Control Board with DC Motor Board

9 2520-444 Limit Switch Harness Assembly

10 2510-249 Input Wire Harness Assembly

11 2510-250 Output Wire Harness Assembly

13 2500-071 Terminal Strip, 16-141 (2)

14 2510-261 Control Box Motor Harness Assembly

15 2300-696 Clear Control Box Cover

2300-733 Velcro Hook for Box Cover

2300-734 Velcro Loop for Box Cover

16 2500-2127-CB DC Chargerboard

REF

NO. PART NO. DESCRIPTION

17 2500-2293 Circuit Breaker, 15 amp Auto-Reset

18 2500-2293 Circuit Breaker, 15 amp Auto-Reset

19 2500-1975 Fuse, 3 Amp

22 2500-1975 3 Amp Fuse for Control Board

2520-395 Complete Controller Assembly

115VAC (order limit harness and

mounting brackets separately)

23 2300-735 Heyco Bushing, 1.09 diameter
